Differences and Applications of Heat Pipes and VC Vapor Chambers

In the field of electronic equipment heat dissipation, heat pipes and VC vapor chambers are two common thermal management technologies. They each have their own advantages and are suitable for different scenarios. The following are their core differences and features:

1.Heat Conduction Dimension

• Heat Pipe: One-dimensional linear heat conduction, efficiently transferring heat along its length.

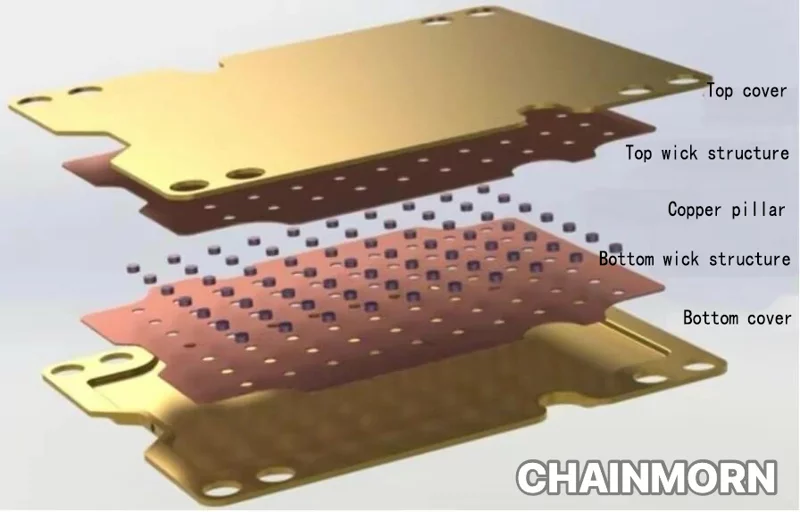

• Vapor Chamber: Two-dimensional planar heat conduction, rapidly spreading heat across the entire surface for higher efficiency.

2.Manufacturing Process

• Heat Pipe：The internal copper tube is filled with sintered copper powder, followed by water injection, degassing, and sealing. The process is relatively simple.
• Vapor Chamber: Requires both sintered powder and mesh processes, making production more complex and technically demanding.

3.Cost Comparison

• Heat Pipe：Mature technology, simpler manufacturing, and lower cost, suitable for budget-conscious applications.
• Vapor Chamber:More complex process and higher cost, but offers superior performance.

4.Application Scenarios

• Heat Pipe: Ideal for single heat sources or space-constrained devices.
• Vapor Chamber: Larger cooling area, direct contact with heat sources, higher thermal efficiency, and better suited for multi-high-power heat dissipation.

5.Common Applications

Heat Pipe: Laptop CPU/GPU cooling, LED heat dissipation, etc.

Vapor Chamber: 5G smartphone chips, high-performance graphics cards, etc.

Conclusion: Heat pipes are suitable for traditional cooling needs, while vapor chambers are better for high-performance, compact devices requiring advanced thermal management.

CHAINMORN provides efficient thermal solutions. For Vapor Chamber stamping or intelligent feeding needs, feel free to contact us! 🔥
