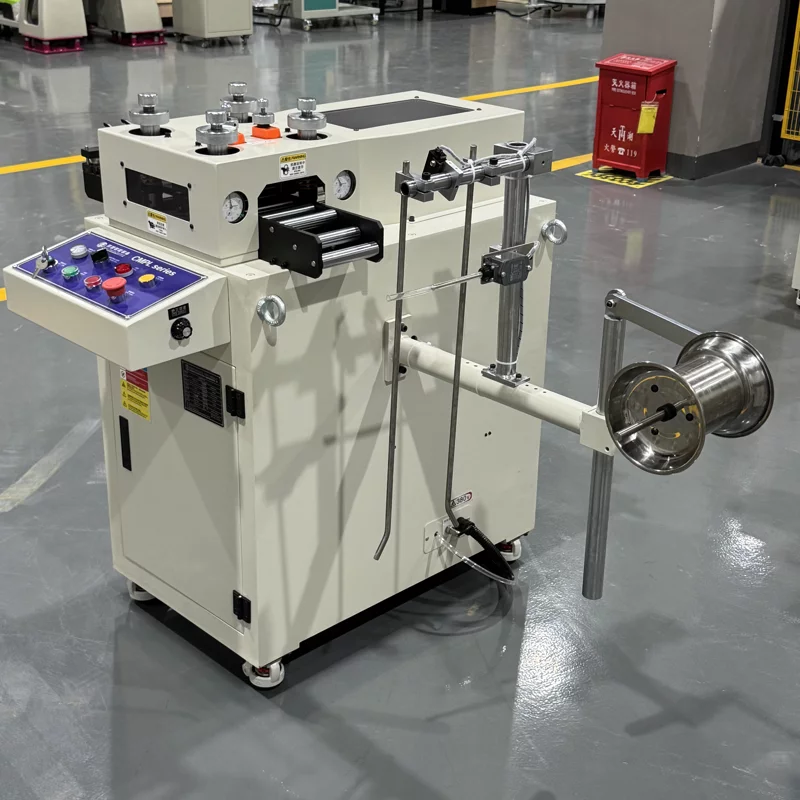

Product Advantage Description of CMPL-120 Ultra-Precision Leveling Machine

The core advantages of the ultra-precision leveling machine (120mm wide /0.05mm ultra-thin type/rolling diameter 10mm)

Ultra-precision fine-tuning system

• Equipped with 4 high-precision dial indicators, it enables independent fine-tuning at four points to ensure the leveling accuracy (±0.05mm/m) of ultra-thin materials ranging from 0.05 to 0.2mm.

Professional ultra-thin material solutions

• Designed specifically for ultra-thin materials with a width of 120mm and a thickness of 0.05-0.2mm, it adopts a φ10×19 corrective roller group (arranged with 9 on top and 10 at the bottom) to prevent surface scratches on the material

Precision transmission system

• The universal joint branch transmission structure completely eliminates the gap error of the traditional transmission method, and is compatible with 0-20mm/min, meeting the requirements of ultra-precision processing

Intelligent control system

• The combination of motor and frequency converter, in conjunction with photoelectric switch sensing, enables stepless speed regulation of material discharge, which can make the material leveling stress more stable. The uniform discharge speed makes the equipment more energy-efficient and the motor more durable

Flip-up cover

• It is convenient for personnel to clean foreign objects on the rollers

Safe operation design

• The emergency stop button and overload protection dual safety mechanism, along with the off-white body and prominent warning labels, comply with mechanical safety regulations
• (Note: The actual processing effect may vary slightly due to factors such as material properties and environmental temperature and humidity. It is recommended to provide samples for trial operation.)
