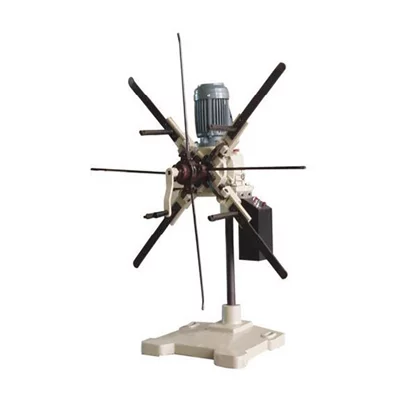

Single End Decoiler
Basic Attributes
- 型号 MU
- 型号 MU
- 型号 MU
- 卷料宽度 800 mm
- 卷料宽度 800 mm
- 卷料宽度 800 mm
- 卷料重量 3,000 kg
- 卷料重量 3,000 kg
- 卷料重量 3,000 kg
- 送料速度 16 m/min
- 送料速度 16 m/min
- 送料速度 16 m/min
Models List
-
MU-200
-
MU-300
-
MU-400
-
MU-500
-
MU-600
-
MU-700
-
MU-800
Product Specification
| Item | MU-200 | MU-300 | MU-400 | MU-500 |
|---|---|---|---|---|
| Max. Material Width mm | 200 | 300 | 400 | 500 |
| Max. Coil Weight kg | 500 | 800 | 1500 | 2000 |
| Coil Inside Diameter mm | 450~530 | 450~530 | 450~530 | 450~530 |
| Coil Outside Diameter mm | 1200 | 1200 | 1200 | 1200 |
| Feed Speed m/min | 16 | 16 | 16 | 16 |
| Motor HP | 0.5 | 1 | 1 | 1 |
| Item | MU-600 | MU-700 | MU-800 |
|---|---|---|---|
| Max. Material Width mm | 600 | 700 | 800 |
| Max. Coil Weight kg | 3000 | 3000 | 3000 |
| Coil Inside Diameter mm | 450~530 | 450~530 | 450~530 |
| Coil Outside Diameter mm | 1200 | 1200 | 1200 |
| Feed Speed m/min | 16 | 16 | 16 |
| Motor HP | 1 | 2 | 2 |
