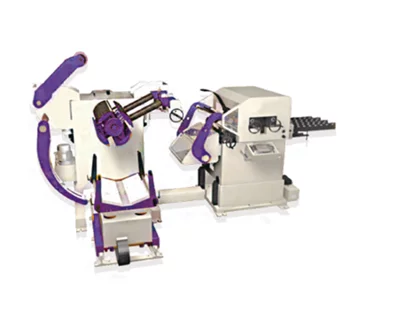

Three-in-one leveling and feeding machine - for thick plates
Basic Attributes
- Model CMF3
- Coil Width 70-1300 mm
- Coil Thickness 0.6-6.0 mm
- Feeding Speed 16 m/min
Models List
-
CMF3-400
-
CMF3-600
-
CMF3-800
-
CMF3-1000
-
CMF3-1300
Applicable Materials：
Hot RolledSteel, Cold Rolled Steel, Pickled Steel, Stainless Steel, Aluminum Alloy
Machine Characteristics：
1.Combining the functions of a material rack, leveling machine, and feeding machine.this design is ergonomically optimized, saving required workspace, offering stableperformance, easy operation, and high safety.
2. The feeding rollers and leveling rollers are specially treated for higher hardness,using 11 leveling rollers, effectively flattening high-rigidity materials and improving thematerial leveling function.
3. The coil feeding device uses hydraulic expansion, and when paired with the tabledevice, it effectively saves labor.
4. Optional imported servo system ensures feeding precision and a high degree ofautomation.
5. Multiple machine models available, suitable for various punch press needs.Customization can be provided based on the customer's specific requirements
| Item | CMF3-400 | CMF3-600 | CMF3-800 | CMF3-1000 |
|---|---|---|---|---|
| Material Width mm | 70-400 | 70-600 | 70-800 | 70-1000 |
| Material Thickness mm | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 |
| Maximum Material Weight kg | 5000 | 8000 | 8000 | 12000 |
| Inner Diameter of Coi mm | φ508 | φ508 | φ508 | φ508 |
| Outer Diameter of Coil mm | φ1200 | φ1200 | φ1200 | φ1200 |
| Feed-in Rollers branch | 2 (1 top, 1 bottom) | 2 (1 top, 1 bottom) | 2 (1 top, 1 bottom) | 2 (1 top, 1 bottom) |
| Leveling Rollers branch | 7 (4 top, 3 bottom) | 7 (4 top, 3 bottom) | 7 (4 top, 3 bottom) | 7 (4 top, 3 bottom) |
| Feeding Rollers branch | 2 (1 top, 1 bottom) | 2 (1 top, 1 bottom) | 2 (1 top, 1 bottom) | 2 (1 top, 1 bottom) |
| Leveling Precision mm/m² | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Air Pressure Mpa | 0.5 | 0.5 | 0.5 | 0.5 |
| Servo Motor kw | 5.5 | 7.5 | 7.5 | 11 |
| Material Rack Motor kw | 2.2 | 3.7 | 3.7 | 7.5 |
| Standard Material Line Height mm | 1200 ± 100 (Customizable) | 1200 ± 100 (Customizable) | 1200 ± 100 (Customizable) | 1200 ± 100 (Customizable) |
| Standard Feeding Precision mm | ±0.15（0-1000）；±0.2（＞1000）） | ±0.15（0-1000）；±0.2（＞1000）） | ±0.15（0-1000）；±0.2（＞1000）） | ±0.15（0-1000）；±0.2（＞1000）） |
| Maximum Speed m/min | 16 | 16 | 16 | 16 |
| Material rack expansion range mm | φ480-520 | φ480-520 | φ480-520 | φ480-520 |
| Material Rack Expansion Method | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Feeding Direction | Left to Right (Customizable) | Left to Right (Customizable) | Left to Right (Customizable) | Left to Right (Customizable) |
| Power Supply Voltage AC | AC380±10% 50Hz | AC380±10% 50Hz | AC380±10% 50Hz | AC380±10% 50Hz |
| Applicable Materials | Cold-formed steel | Cold-formed steel | Cold-formed steel | Cold-formed steel |
| Machine Color | According to Catalog or Customer-Provided Color Samples | According to Catalog or Customer-Provided Color Samples | According to Catalog or Customer-Provided Color Samples | According to Catalog or Customer-Provided Color Samples |
| Item | CMF3-1300 |
|---|---|
| Material Width mm | 70-1300 |
| Material Thickness mm | 0.6-6.0 |
| Maximum Material Weight kg | 12000 |
| Inner Diameter of Coi mm | φ508 |
| Outer Diameter of Coil mm | φ1200 |
| Feed-in Rollers branch | 2 (1 top, 1 bottom) |
| Leveling Rollers branch | 7 (4 top, 3 bottom) |
| Feeding Rollers branch | 2 (1 top, 1 bottom) |
| Leveling Precision mm/m² | ±1.5 |
| Air Pressure Mpa | 0.5 |
| Servo Motor kw | 11 |
| Material Rack Motor kw | 7.5 |
| Standard Material Line Height mm | 1200 ± 100 (Customizable) |
| Standard Feeding Precision mm | ±0.15（0-1000）；±0.2（＞1000）） |
| Maximum Speed m/min | 16 |
| Material rack expansion range mm | φ480-520 |
| Material Rack Expansion Method | Hydraulic |
| Feeding Direction | Left to Right (Customizable) |
| Power Supply Voltage AC | AC380±10% 50Hz |
| Applicable Materials | |
| Machine Color | According to Catalog or Customer-Provided Color Samples |
