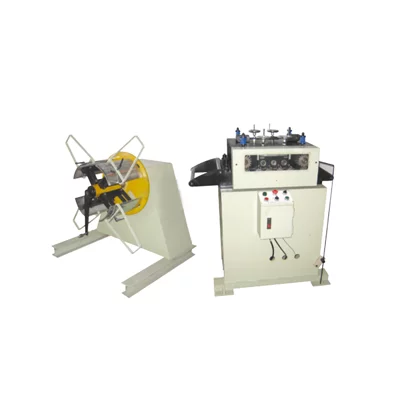

WUL Uncoiler and Leveler Combination
Basic Attributes
- Model WUL
- Coil Width 600 mm
- Coil Thickness 0.5 ~ 1.6/ 3.2 mm
- Coil Weight Capacity 2,000 kg
- Feeding Speed 16 m/min
Models List
-
WUL-200
-
WUL-300
-
WUL-400
-
WUL-500
-
WUL-600
Product Specification
| Item | WUL-200 | WUL-300 | WUL-400 | WUL-500 |
|---|---|---|---|---|
| Max. Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.5 ~ 1.6/ 3.2 | 0.5 ~ 1.6/ 3.2 | 0.5 ~ 1.6/ 3.2 | 0.5 ~ 1.6/ 3.2 |
| Max. Coil Weight kg | 800 | 1000 | 1500 | 2000 |
| Coil Outside Diameter mm | 1200 | 1200 | 1200 | 1200 |
| Straighten Speed m/min | 16 | 16 | 16 | 16 |
| Motor HP | 1 | 2 | 2 | 2 |
| Item | WUL-600 |
|---|---|
| Max. Material Width mm | 600 |
| Material Thickness mm | 0.5 ~ 1.6/ 3.2 |
| Max. Coil Weight kg | 2000 |
| Coil Outside Diameter mm | 1200 |
| Straighten Speed m/min | 16 |
| Motor HP | 3 |
