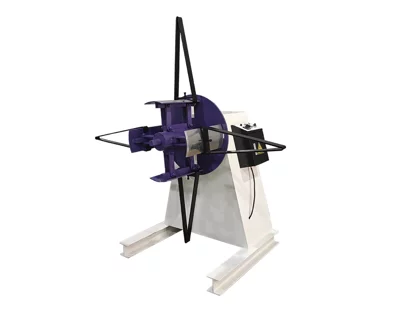

Vertical Heavy-Duty Single-Head Material Rack
Basic Attributes
- 型号 CMMT
- 型号 CMMT
- 型号 CMMT
- 卷料宽度 600 mm
- 卷料宽度 600 mm
- 卷料宽度 600 mm
- 卷料重量 3,000 kg
- 卷料重量 3,000 kg
- 卷料重量 3,000 kg
Models List
-
CMMT-200
-
CMMT-300
-
CMMT-400
-
CMMT-500
-
CMMT-600
Product Specification
| Item | CMMT-200 | CMMT-300 | CMMT-400 | CMMT-500 |
|---|---|---|---|---|
| Material Width mm | 200 | 300 | 400 | 500 |
| Material Weight kg | 500 | 800 | 1500 | 2000 |
| Inner Diameter of Coil mm | φ450-530 | φ450-530 | φ450-530 | φ450-530 |
| Outer Diameter of Coil mm | φ1200 | φ1200 | φ1200 | φ1200 |
| Feeding Speed m/min | 15 | 15 | 15 | 15 |
| Expansion Method | Manual/Hydraulic Expansion | Manual/Hydraulic Expansion | Manual/Hydraulic Expansion | Manual/Hydraulic Expansion |
| Drive Motor hp | 0.5 | 1 | 2 | 3 |
| Item | CMMT-600 |
|---|---|
| Material Width mm | 600 |
| Material Weight kg | 3000 |
| Inner Diameter of Coil mm | φ450-530 |
| Outer Diameter of Coil mm | φ1200 |
| Feeding Speed m/min | 15 |
| Expansion Method | Manual/Hydraulic Expansion |
| Drive Motor hp | 3 |
