FGC Cam Feeder
Basic Attributes
- 型号 FGC
- 型号 FGC
- 型号 FGC
- 卷料宽度 300 mm
- 卷料宽度 300 mm
- 卷料宽度 300 mm
- 材料厚度范围 0.1 ~ 1.6 mm
- 材料厚度范围 0.1 ~ 1.6 mm
- 材料厚度范围 0.1 ~ 1.6 mm
Models List
-
FGC-150S
-
FGC-200S
-
FGC-300S
Description
Cam Feeder (Gear Change System)
Please enjoy steady high speed processing.
Features:
- Suit to require high feed accuracy under high feed speed product.
- Suit to cover widest range of material thick to thin, wide to narrow and feed length short to long application.
- Unnecessary to adjust material thickness and feed length can be altered by changing the gears. No special skill needed.
Specifications:
- Adopt cam driving system for intermittent roller feed.

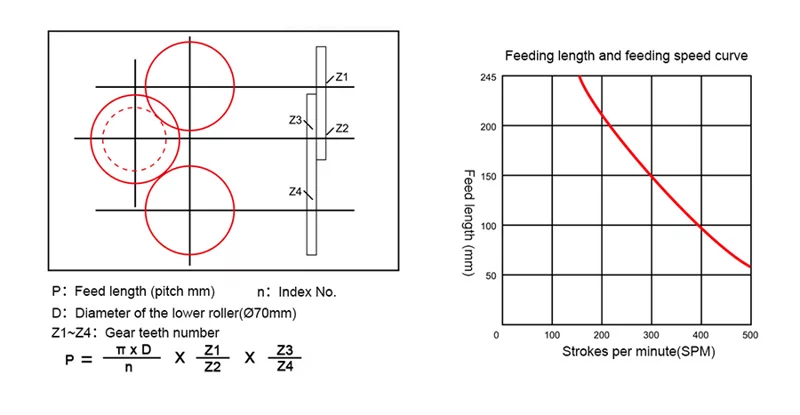

- Change 2 to 4 gears to change feed length.
- Material is driven by lower roller. The upper roller is pressed by spring.
- Using manual air valve to open the upper and lower rollers when insert material.
- Index cams are lubricated in oil bath and gear system is lubricated automatically.
- Both upper and lower rollers are hard chrome plated.
- Release device is eccentric cam, it can easily provide releasing angle between 0°~180° as you wish.
Product Specification
| Item | FGC-150S | FGC-200S | FGC-300S |
|---|---|---|---|
| Max. Material Width mm | 150 | 200 | 300 |
| Material Thickness mm | 0.1 ~ 1.6 | 0.1 ~ 1.6 | 0.1 ~ 1.6 |
| Material Line Height mm | 60 ~ 120 | 60 ~ 120 | 60 ~ 120 |
| Feeding Angle ° | 180° | 180° | 180° |
| Weight kg | 237 | 267 | 320 |
