NLF5 Reel Straightener Feeder
Basic Attributes
- Model NLF5
- Coil Width 90 ~ 1800 mm
- Coil Thickness 1.0 ~ 10.0 mm
- Coil Weight Capacity 15,000 kg
- Feeding Speed 12 m/min
- Feeding Accuracy ± 0.20 mm
Models List
-
NLF5-400
-
NLF5-500
-
NLF5-600
-
NLF5-700
-
NLF5-800
-
NLF5-1000
-
NLF5-1800
Description
Application:

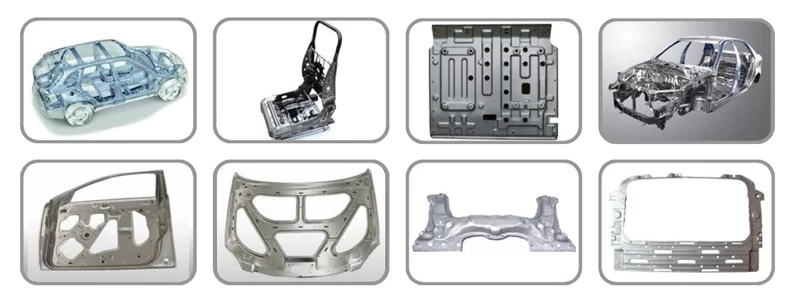

1.Suit for High tensile steel products like automotive parts.
2.Can be matched to manipulator or other peripheral equipment.
3.Special designs and manufacturing are welcome according to customer demand.
Product Specification
| Item | NLF5-400 | NLF5-500 | NLF5-600 | NLF5-700 |
|---|---|---|---|---|
| Material Width mm | 90 ~ 400 | 90 ~ 500 | 90 ~ 600 | 90 ~ 700 |
| Material Thickness mm | 1.0 ~ 10.0 | 1.0 ~ 10.0 | 1.0 ~ 10.0 | 1.0 ~ 10.0 |
| Max. Coil Weight kg | 5000 | 5000 | 5000 | 7000 |
| Uncoiler Motor HP | 3 | 3 | 3 | 5 |
| Servo Motor kW | AC11 ~ 22 | AC11 ~ 22 | AC11 ~ 22 | AC11 ~ 22 |
| Coil Inner Diameter mm | 480 ~ 520 | 480 ~ 520 | 480 ~ 520 | 480 ~ 520 |
| Coil Inner Diameter mm | Ø 610 | Ø 610 | Ø 610 | Ø 610 |
| Coil Outer Diameter mm | 1500 | 1500 | 1500 | 1500 |
| Max. Feed Speed m/min | 12 | 12 | 12 | 12 |
| Max. Pneumatic SPM spm | 50 | 50 | 50 | 50 |
| Feed Accuracy mm | ± 0.20 | ± 0.20 | ± 0.20 | ± 0.20 |
| Standard Material Line Height mm | 1100 ± 100 | 1100 ± 100 | 1100 ± 100 | 1100 ± 100 |
| Clean Air Pressure kPa | 500 | 500 | 500 | 500 |
| Item | NLF5-800 | NLF5-1000 | NLF5-1800 |
|---|---|---|---|
| Material Width mm | 90 ~ 800 | 90 ~ 1000 | 90 ~ 1800 |
| Material Thickness mm | 1.0 ~ 10.0 | 1.0 ~ 10.0 | 1.0 ~ 10.0 |
| Max. Coil Weight kg | 7000 | 10000 | 15000 |
| Uncoiler Motor HP | 5 | 7.5 | 10 |
| Servo Motor kW | AC11 ~ 22 | AC11 ~ 22 | AC11 ~ 22 |
| Coil Inner Diameter mm | 480 ~ 520 | 480 ~ 520 | Ø 508 |
| Coil Inner Diameter mm | Ø 610 | Ø 610 | Ø 610 |
| Coil Outer Diameter mm | 1500 | 1500 | 1500 |
| Max. Feed Speed m/min | 12 | 12 | 12 |
| Max. Pneumatic SPM spm | 50 | 50 | 50 |
| Feed Accuracy mm | ± 0.20 | ± 0.20 | ± 0.20 |
| Standard Material Line Height mm | 1100 ± 100 | 1100 ± 100 | 1100 ± 100 |
| Clean Air Pressure kPa | 500 | 500 | 500 |
