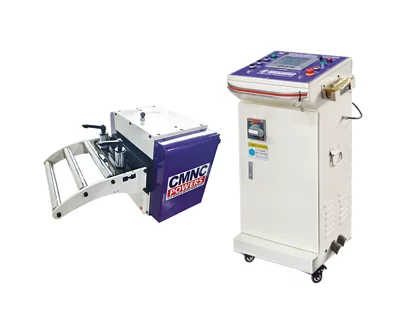

Servo Feeder – Medium Sheet – Pneumatic Release
Basic Attributes
- Model CMNC
- Coil Width 800 mm
- Coil Thickness 0.2-.35 /0.3-4.5 mm
- Feeding Speed 16 m/min
Models List
-
CMNC-200
-
CMNC-300
-
CMNC-400
-
CMNC-500
-
CMNC-600
-
CMNC-700
-
CMNC-800
Description

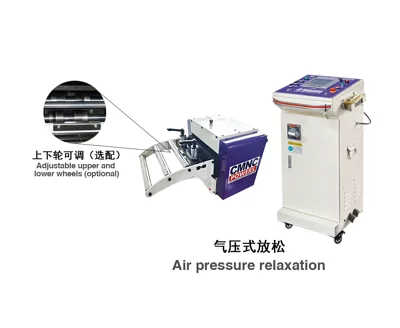

Optional Features:
Upper and lower rollers with rubber coating.· Adjustable upper and lower rollers.For special specifications, please feel free to inquir. Chainmorn Intelligent Equipment Trading (Shenzhen) Co., Ltd. Phone: +86 755 27398471-73
Product Specification
| Item | CMNC-200 | CMNC-300 | CMNC-400 | CMNC-500 |
|---|---|---|---|---|
| Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.2-3.5 | 0.2-3.5 | 0.2-3.5 | 0.2-3.5 |
| Material Thickness mm | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 |
| Feeding Length mm | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Feeding Speed m/min | 16 | 16 | 16 | 16 |
| Feeding Direction | Left to Right (Customizable) | Left to Right (Customizable) | Left to Right (Customizable) | Left to Right (Customizable) |
| Servo Motor AC | 0.85 | 0.85 | 1.3 | 1.3 |
| Servo Motor AC | 1.8 | 1.8 | 2.9 | 2.9 |
| Power Supply Voltage AC | 380V Three-Phase | 380V Three-Phase | 380V Three-Phase | 380V Three-Phase |
| Feeding Line Height mm | 70-280 (Customizable) | 70-280 (Customizable) | 70-280 (Customizable) | 70-280 (Customizable) |
| Equipment Dimensions mm | W560*K550*H450 | W560*K600*H450 | W560*K700*H450 | W560*K800*H450 |
| Release Method | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Item | CMNC-600 | CMNC-700 | CMNC-800 |
|---|---|---|---|
| Material Width mm | 600 | 700 | 800 |
| Material Thickness mm | 0.2-3.5 | 0.2-3.5 | 0.2-3.5 |
| Material Thickness mm | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 |
| Feeding Length mm | 9999.99 | 9999.99 | 9999.99 |
| Feeding Speed m/min | 16 | 16 | 16 |
| Feeding Direction | Left to Right (Customizable)Left to Right (Customizable) | Left to Right (Customizable) | Left to Right (Customizable) |
| Servo Motor AC | 1.8 | 1.8 | 2.9 |
| Servo Motor AC | 2.9 | 2.9 | 4.4 |
| Power Supply Voltage AC | 380V Three-Phase | 380V Three-Phase | 380V Three-Phase |
| Feeding Line Height mm | 70-280 (Customizable) | 70-280 (Customizable) | 70-280 (Customizable) |
| Equipment Dimensions mm | W560*K900*H450 | W560*K1040*H450 | W560*K1040*H450 |
| Release Method | Pneumatic | Pneumatic | Pneumatic |
