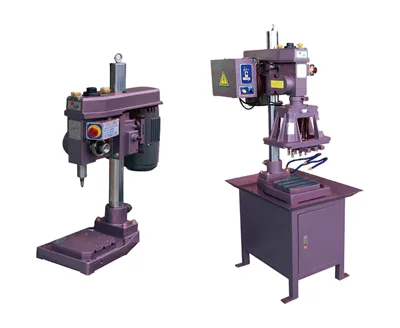

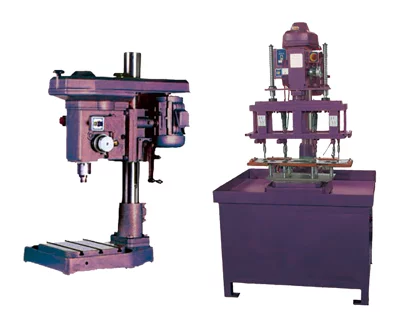

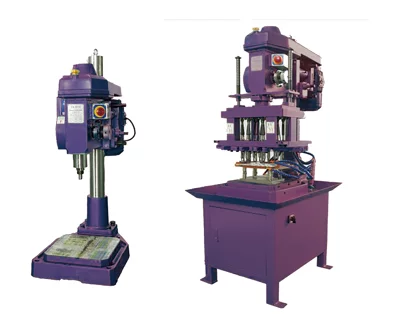

Multi-Spindle Vertical Tapping Machine
Models List
-
CMMST-024A
-
CMMST-036A
-
CMMST-048A
-
CMMST-060A
-
CMMST-096A
-
CMMST-160A
-
CMMST-216B
Product Specification
| Item | CMMST-024A | CMMST-036A | CMMST-048A | CMMST-060A |
|---|---|---|---|---|
| Gearbox Output Shaft Count axis | 24 | 36 | 48 | 60 |
| Output Shaft Spacing (L×W) mm | 382×229 | 331*331 | 432*331 | 764*424 |
| Gear Arrangement | 4*6 | 6*6 | 6*8 | 10*6 |
| Machine Footprint (L×W) mm | 860×680 | 860×680 | 860×680 | 1200*800 |
| Gearbox Dimensions (L×W) mm | 760×580 | 760×580 | 760×580 | 1100*700 |
| Gearbox Output Shaft Speed RPM | 50-1000 (Adjustable) | 50-1000 (Adjustable) | 50-1000 (Adjustable) | 50-1000 (Adjustable) |
| Tapping Stroke per Tap (Turns) | 10-25 (Adjustable) | 10-25 (Adjustable) | 10-25 (Adjustable) | 10-25 (Adjustable) |
| Item | CMMST-096A | CMMST-160A | CMMST-216B |
|---|---|---|---|
| Gearbox Output Shaft Count axis | 96 | 160 | 216 |
| Output Shaft Spacing (L×W) mm | 996*634 | 1315*789 | 1425*902 |
| Gear Arrangement | 12*8 | 16*1 | 18*12 |
| Machine Footprint (L×W) mm | 1500*1000 | 1800*1350 | 1900*1400 |
| Gearbox Dimensions (L×W) mm | 1100*750 | 1400*900 | 1800*1300 |
| Gearbox Output Shaft Speed RPM | 50-1000 (Adjustable) | 50-1000 (Adjustable) | 50-1000 (Adjustable) |
| Tapping Stroke per Tap (Turns) | 10-25 (Adjustable) | 10-25 (Adjustable) | 10-25 (Adjustable) |
