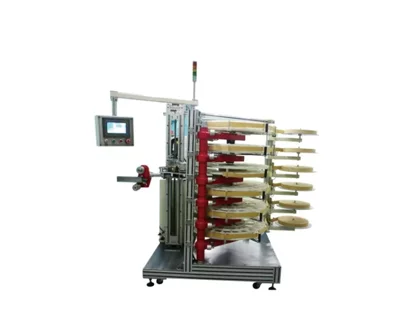

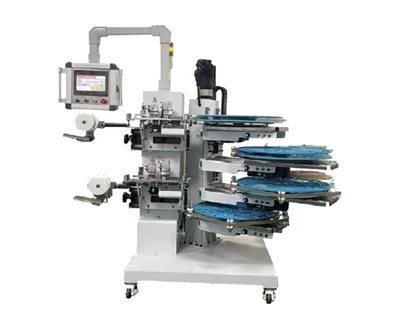

Horizontal Automatic Disc Changeover Material Winder
Basic Attributes
- 型号 CMHP
- 型号 CMHP
- 型号 CMHP
- 卷料宽度 0.05-0.5 mm
- 卷料宽度 0.05-0.5 mm
- 卷料宽度 0.05-0.5 mm
Models List
-
CMHP-04
-
CMHP-08
Product Specification
| Item | CMHP-04 | CMHP-08 |
|---|---|---|
| Material Width mm | 1- 40 | 1 -40 |
| Material Thickness mm | 0.05-0.5 | 0.05-0.5 |
| Number of Take-Up Discs | 2 material strips/8 discs | 2 material strips/8 discs |
| Winding Speed m | 15 | 15 |
| Terminal Take-Up Weight kg | 20 | 20 |
| Maximum Terminal Disc Diameter mm | 650 | 650 |
| Dimensions cm | 150*160*190 | 250*160*243 |
| Operating Screen | Human-machine Touch Interface | Human-machine Touch Interface |
| Air Pressure (Operating Pressure Range) (kgf/cm²) | 1-5 | 1-5 |
| Power Supply | 220VAC, 60Hz | 220VAC, 60Hz |
