CMHD Gantry-type High-speed Precision Punching Press
Basic Attributes
- Model CMHD-125 / 220 / 300 / 400
- Press Capacity 125 / 220 / 300 / 400 ton
Models List
-

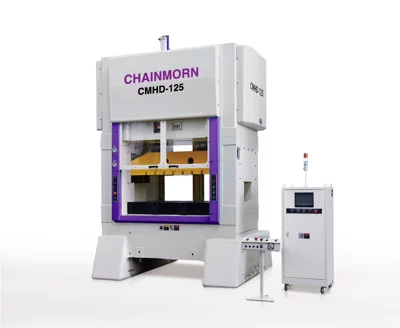

CMHD-125
-

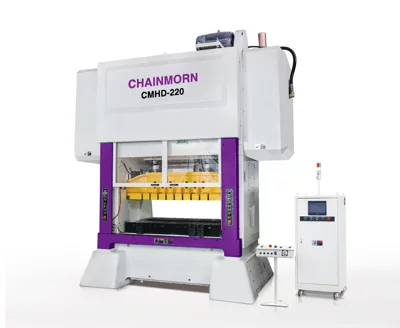

CMHD-220
-

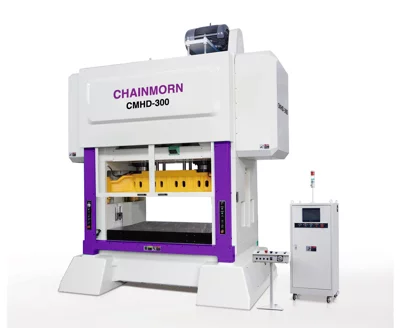

CMHD-300
-

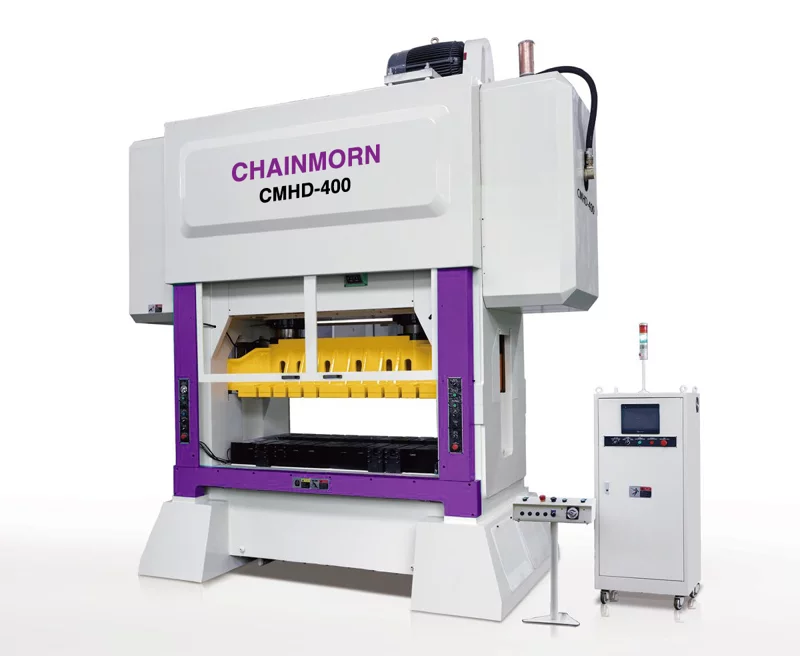

CMHD-400
Description
Product Specification
| Item | CMHD-125 | CMHD-220 | CMHD-300 | CMHD-400 |
|---|---|---|---|---|
| Stroke mm | 20 / 30 | 20 / 30 | 20 / 30 | 30 / 40 / 50 |
| Strokes per Minute spm | 150-450 / 150-400 | 150-450 / 150-400 | 150-350 / 150-300 | 150-350 / 150-300 |
| Close Height mm | 365 / 370 | 425 / 420 | 510 / 505 | 480 / 475 / 470 |
| Table Size mm | 1400 * 850 | 1700 * 950 | 2000 * 1000 | 2800 * 1200 |
| Slider Size mm | 1400 * 600 | 1700 * 700 | 2000 * 900 | 2800 * 1100 |
| Adjustment Range mm | 50 | 50 | 50 | 50 |
| Die Hole Size mm | 1055 * 180 | 1300 * 250 | 1520 * 330 | 2200 * 400 |
| Motor hp | 30 | 60 | 100 | 100 |
