CMHD Gantry-type High-speed Precision Punching Press
Basic Attributes
- Model CMHD-30 / 45 / 60 / 80
- Press Capacity 30 / 45 / 60 / 80 ton
Models List
-

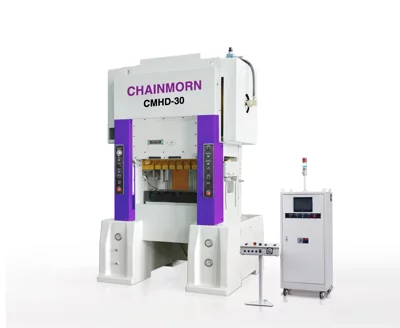

CMHD-30
-
CMHD-45
-

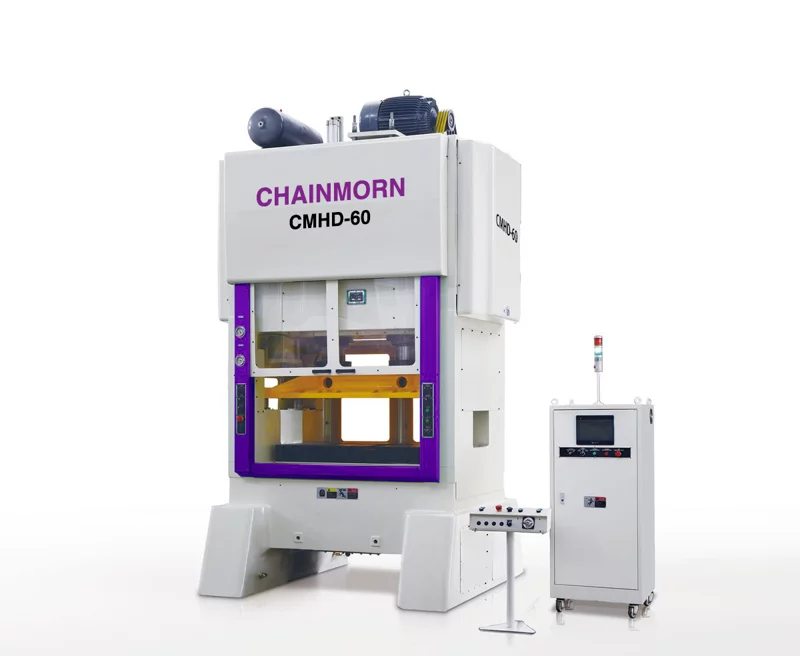

CMHD-60
-

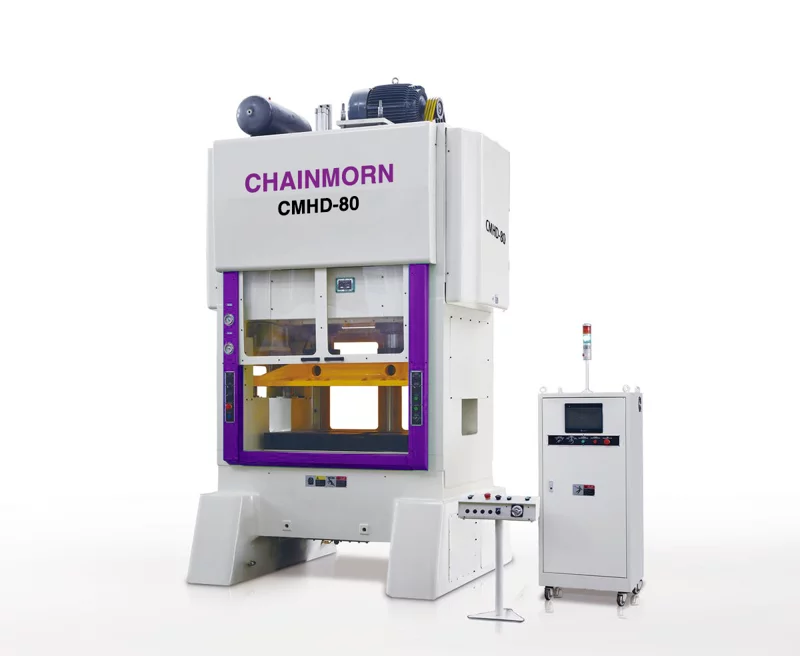

CMHD-80
Description
Product Specification
| Item | CMHD-30 | CMHD-45 | CMHD-60 | CMHD-80 |
|---|---|---|---|---|
| Stroke mm | 20 / 30 / 40 | 20 / 30 / 40 / 50 | 20 / 30 / 40 / 50 | 20 / 30 / 40 / 50 |
| Strokes per Minute spm | 200-1200 / 200-1100 / 200-800 | 200-1000 / 200-800 / 200-600 / 200-500 | 200-1000 / 200-800 / 200-600 / 200-500 | 200-600 / 200-600 / 200-500 / 200-500 |
| Close Height mm | 235 / 230 / 225 | 250 / 245 / 240 / 235 | 325 / 320 / 315 / 310 | 355 / 350 / 345 / 340 |
| Table Size mm | 660 * 460 | 750 * 500 | 950 * 700 | 1200 * 750 |
| Slider Size mm | 360 * 330 | 750 * 380 | 900 * 450 | 1200 * 500 |
| Adjustment Range mm | 40 | 50 | 50 | 50 |
| Die Hole Size mm | 500 * 100 | 500 * 100 | 600 * 130 | 750 * 150 |
| Motor hp | 10 | 15 | 25 | 30 |
