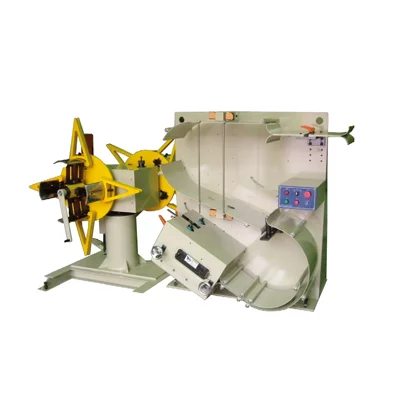

FUL Precision Uncoiler and Leveler Combination
Basic Attributes
- 型号 FUL
- 型号 FUL
- 型号 FUL
- 卷料宽度 600 mm
- 卷料宽度 600 mm
- 卷料宽度 600 mm
- 材料厚度范围 0.2 ~ 1.0/1.2 mm
- 材料厚度范围 0.2 ~ 1.0/1.2 mm
- 材料厚度范围 0.2 ~ 1.0/1.2 mm
- 卷料重量 1,500 kg
- 卷料重量 1,500 kg
- 卷料重量 1,500 kg
Models List
-
FUL-200
-
FUL-300
-
FUL-400
-
FUL-500
-
FUL-600
Description
Features:
- Used to 0.2~1.2 thick material as stainless strip, copper strip and aluminum strip which required high surface and accuracy products.
- Pedestal designed upper roller set is convenient raised to clean.
- Combined uncoiler and straightener save space and increase space using flexible.
- Upper straightener used 2 sets independent adjustable device to provide individual adjustment for convenient to process high-level required products.
- Individual transmit working roller to increase surface flatness.
- Upper straightener add one auxiliary roller which could adjust material curve direction to suit customer requirement.
- Working roll use bearing steel(SUJ2) with heat treating to HRC60º, hard chromate treatment then grinding again for high hardness, high wear-resisting and long lifetime.
- Also suit long cut-to-length system.
- Suit to all kinds of feeders.
Product Specification
| Item | FUL-200 | FUL-300 | FUL-400 | FUL-500 |
|---|---|---|---|---|
| Max. Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.2 ~ 1.0/1.2 | 0.2 ~ 1.0/1.2 | 0.2 ~ 1.0/1.2 | 0.2 ~ 1.0/1.2 |
| Max. Coiler Weight kg | 1200 | 1200 | 1200 | 1500 |
| Straighten Motor HP | 1 | 1 | 1 | 2 |
| Coil Inside Diameter mm | 450 ~ 530 | 450 ~ 530 | 450 ~ 530 | 450 ~ 530 |
| Max. Coil Outside Diameter mm | 1200 | 1200 | 1200 | 1200 |
| Straighten Speed m/min | 20 | 20 | 20 | 20 |
| Item | FUL-600 |
|---|---|
| Max. Material Width mm | 600 |
| Material Thickness mm | 0.2 ~ 1.0/1.2 |
| Max. Coiler Weight kg | 1500 |
| Straighten Motor HP | 2 |
| Coil Inside Diameter mm | 450 ~ 530 |
| Max. Coil Outside Diameter mm | 1200 |
| Straighten Speed m/min | 20 |
