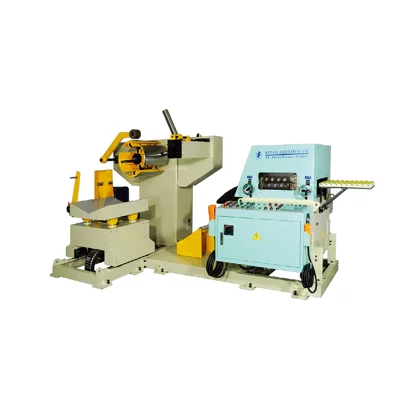

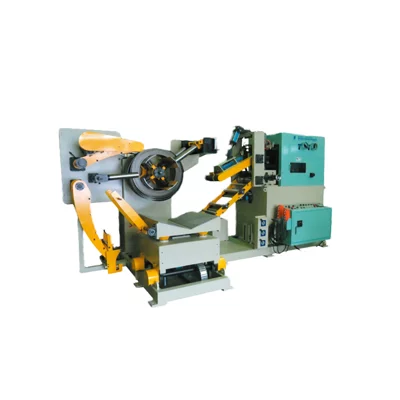

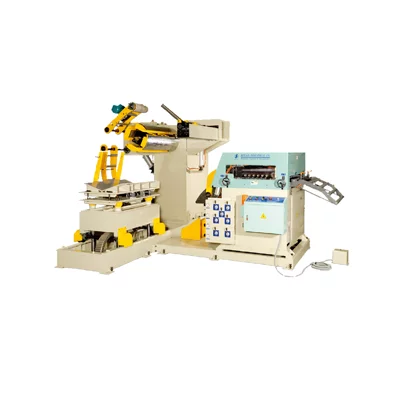

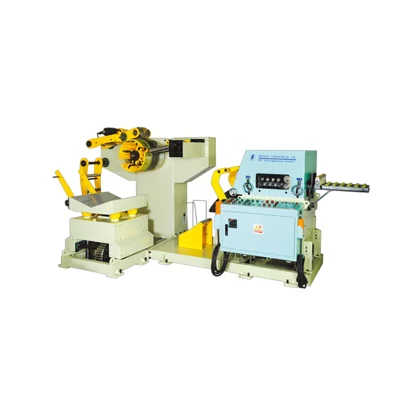

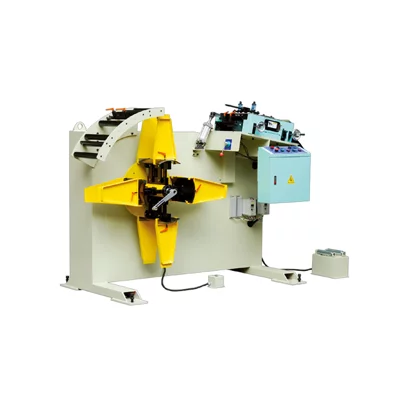

SUL Uncoiler and Leveler Combination
Basic Attributes
- 型号 SUL
- 型号 SUL
- 型号 SUL
- 卷料宽度 500 mm
- 卷料宽度 500 mm
- 卷料宽度 500 mm
- 材料厚度范围 0.3 ~ 0.6 mm
- 材料厚度范围 0.3 ~ 0.6 mm
- 材料厚度范围 0.3 ~ 0.6 mm
- 卷料重量 3000 x 2 kg
- 卷料重量 3000 x 2 kg
- 卷料重量 3000 x 2 kg
- 送料速度 0 ~ 60 m/min
- 送料速度 0 ~ 60 m/min
- 送料速度 0 ~ 60 m/min
Models List
-
SUL-200
-
SUL-300
-
SUL-400
-
SUL-500
Description
Features:
1.High speed dual heads uncoiler, easy operate to work with high speed press.
2.S type material guide system adopt optical signal, PC and inverter to control process speed to synchronous press speed. Max. speed up to 60M per minute.
3.When use Cam Feeder composed with highly precision Indexing Cam, feeding speed can reach 60M/minute within ±0.05mm accuracy.
4.Dual heads uncoiler can turn 180˚. Also can choice hydraulic expansion cradle for operate easily and improve efficiency.
Option:
1.Hydraulic cradle.
2.Cradle can moving right and left.
Product Specification
| Item | SUL-200 | SUL-300 | SUL-400 | SUL-500 |
|---|---|---|---|---|
| Max. Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.3 ~ 0.6 | 0.3 ~ 0.6 | 0.3 ~ 0.6 | 0.3 ~ 0.6 |
| Max. Coil Weight kg | 1000 x 2 | 2000 x 2 | 2000 x 2 | 3000 x 2 |
| Straighten Motor HP | 2 | 3 | 5 | 5 |
| Coil Inside Diameter mm | 450 ~ 530 | 450 ~ 530 | 450 ~ 530 | 450 ~ 530 |
| Coil Outside Diameter mm | 1200 | 1200 | 1200 | 1200 |
| Material Speed m/min | 0 ~ 60 | 0 ~ 60 | 0 ~ 60 | 0 ~ 60 |
