air feeding machine
Basic Attributes
- Model CM
- Coil Width 100 mm
Models List
-
CMA-50
-
CMA-100
-
CMA-150
-
CMA-200
-
CMA-250
-
CMB-50
-
CMB-100
-
CMB-150
-
CMB-200
-
CMB-250
-
CMC-50
-
CMC-100
-
CMC-150
-
CMC-200
-
CMC-250
Description
Here’s the English translation for the descriptions of the different types of air automatic feeders:

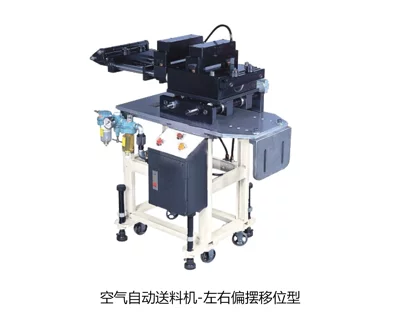

一、Air Automatic Feeder – Left/Right Swing Displacement Type Features:
- Suitable for processing various forms of parts, saving more than 50% of materials.
- Support uses vertical bearings and round rod sliding, ensuring no noise, high wear resistance, light load, and fast displacement.
- Reduces feeding time.
- Uses electronic control to select feeding time.
- Simple operation, easy maintenance, and high precision.

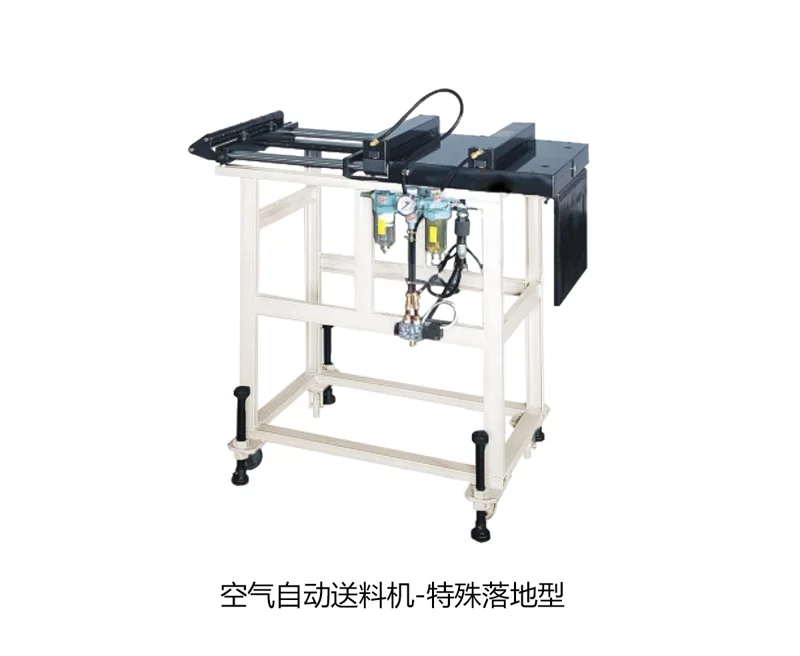

二、Air Automatic Feeder – Special Ground Type Features:
- Suitable for automation processing of larger-sized materials.
- Operates with solenoid valves (electronic control is also available) and uses micro-switch control to adjust the feeding speed earlier or later.
- Adjustable feet that can match the height of punch presses or shears, allowing for material swapping.
- Easy installation, safe operation, low failure rate, and accurate feeding precision.

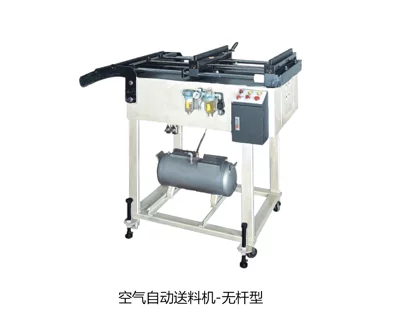

三、Air Automatic Feeder – No Rod Type Features:
- Suitable for automated processing of extra-wide or extra-long materials.
- The machine body design is shorter than typical feeders, saving space.
- Uses a centerless spindle and single-loop design, with multi-cylinder downward pressure feeding to achieve rapid clamping of materials.
Product Specification
| Item | CMA-50 | CMA-100 | CMA-150 | CMA-200 |
|---|---|---|---|---|
| Material Width mm | 50 | 50 | 50 | 50 |
| Feeding Length mm | 50 | 100 | 150 | 200 |
| Material Thickness mm | 1.9 | 1.8 | 1.5 | 1.3 |
| Feeding Speed (c/min) | 280 | 200 | 160 | 130 |
| Fixed Clamp Pressure kg | 64 | 64 | 64 | 64 |
| Moving Clamp Pressure kg | 120 | 120 | 120 | 120 |
| Air Consumption l/min | 50 | 71 | 80 | 85 |
| Weight kg | 4.3 | 5.2 | 6.1 | 6.5 |
| Item | CMA-250 | CMB-50 | CMB-100 | CMB-150 |
|---|---|---|---|---|
| Material Width mm | 50 | 75 | 75 | 75 |
| Feeding Length mm | 250 | 50 | 100 | 150 |
| Material Thickness mm | 1.1 | 1.8 | 1.7 | 1.6 |
| Feeding Speed (c/min) | 110 | 260 | 190 | 150 |
| Fixed Clamp Pressure kg | 64 | 64 | 64 | 64 |
| Moving Clamp Pressure kg | 120 | 120 | 120 | 120 |
| Air Consumption l/min | 90 | 46 | 67 | 78 |
| Weight kg | 7.7 | 5.2 | 6.2 | 7.2 |
| Item | CMB-200 | CMB-250 | CMC-50 | CMC-100 |
|---|---|---|---|---|
| Material Width mm | 75 | 75 | 100 | 100 |
| Feeding Length mm | 200 | 250 | 50 | 100 |
| Material Thickness mm | 1.2 | 1.1 | 1.7 | 1.5 |
| Feeding Speed (c/min) | 110 | 90 | 210 | 160 |
| Fixed Clamp Pressure kg | 64 | 64 | 64 | 64 |
| Moving Clamp Pressure kg | 120 | 120 | 120 | 120 |
| Air Consumption l/min | 77 | 78 | 37 | 56 |
| Weight kg | 8.2 | 9.2 | 6 | 7 |
| Item | CMC-150 | CMC-200 | CMC-250 |
|---|---|---|---|
| Material Width mm | 100 | 100 | 100 |
| Feeding Length mm | 150 | 200 | 250 |
| Material Thickness mm | 1.4 | 1.3 | 1.2 |
| Feeding Speed (c/min) | 120 | 90 | 80 |
| Fixed Clamp Pressure kg | 64 | 64 | 64 |
| Moving Clamp Pressure kg | 120 | 120 | 120 |
| Air Consumption l/min | 68 | 63 | 70 |
| Weight kg | 8.2 | 9.4 | 10.5 |
