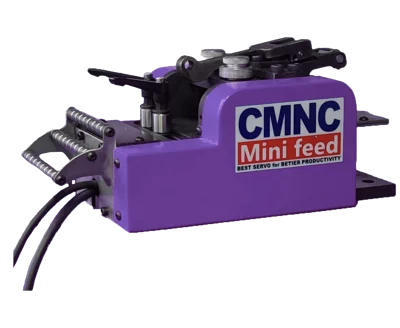

Mini Servo Feeder Machine
Basic Attributes
- 型号 CMNC-40
- 型号 CMNC-40
- 型号 CMNC-40
- 卷料宽度 40 mm
- 卷料宽度 40 mm
- 卷料宽度 40 mm
Models List
-
CMNC-40
Description
- Mini Servo Feeder Machine Features:Suitable for Dual Strip Composite Die Feeding:
- This feeder is ideal for use in applications where dual material strips need to be fed to the front end of a composite die, making it highly effective for complex material processing.
- Quick-Disconnect Power and Signal Cables:
- The use of aviation quick-disconnect connectors for power and signal cables enables fast and convenient mold change, significantly improving efficiency and reducing downtime during setup.
- User-Friendly Interface:

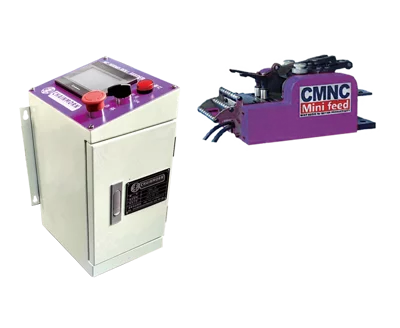

- The machine is controlled via an intuitive human-machine interface (HMI), making it easy to operate, adjust settings, and monitor performance for the user.
- Compact Design:
- The equipment has a small and compact form factor, which helps save space on the production floor, making it perfect for environments with limited room or where space optimization is a priority.
Product Specification
| Item | CMNC-40 |
|---|---|
| Material Width mm | 40 |
| Material Thickness mm | 0.05-0.3 |
| Material Line Height mm | 60 |
| Relaxation Method | Spring-loaded Punch Relaxation |
| Signal Source | Punch Signal/Photoelectric Signal |
| Maximum Feeding Speed Times/min | 480 |

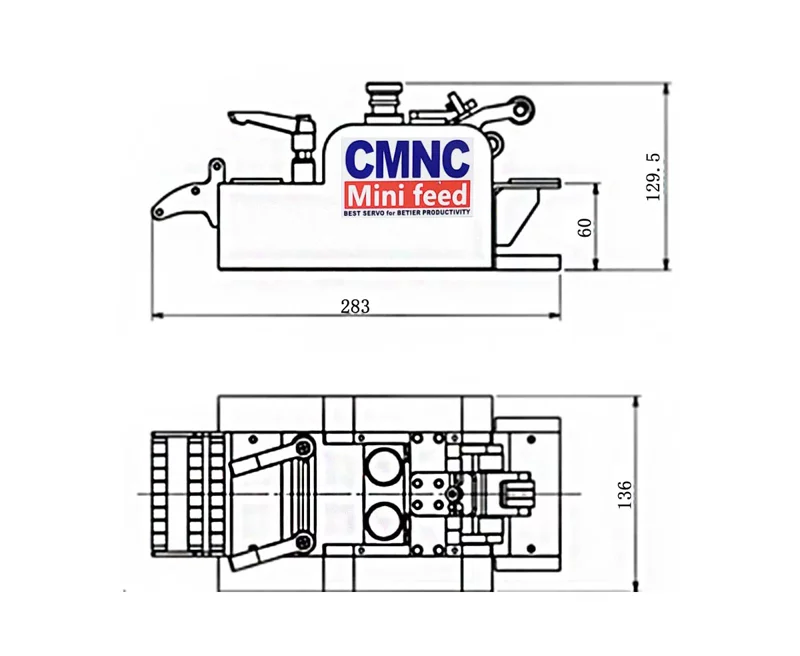

| Mechanical Dimensions mm | 258*121*234 |
| Mechanical Weight kg | 7.2 |
| Material Shortage Detection (Optional) | Optoelectronic |
